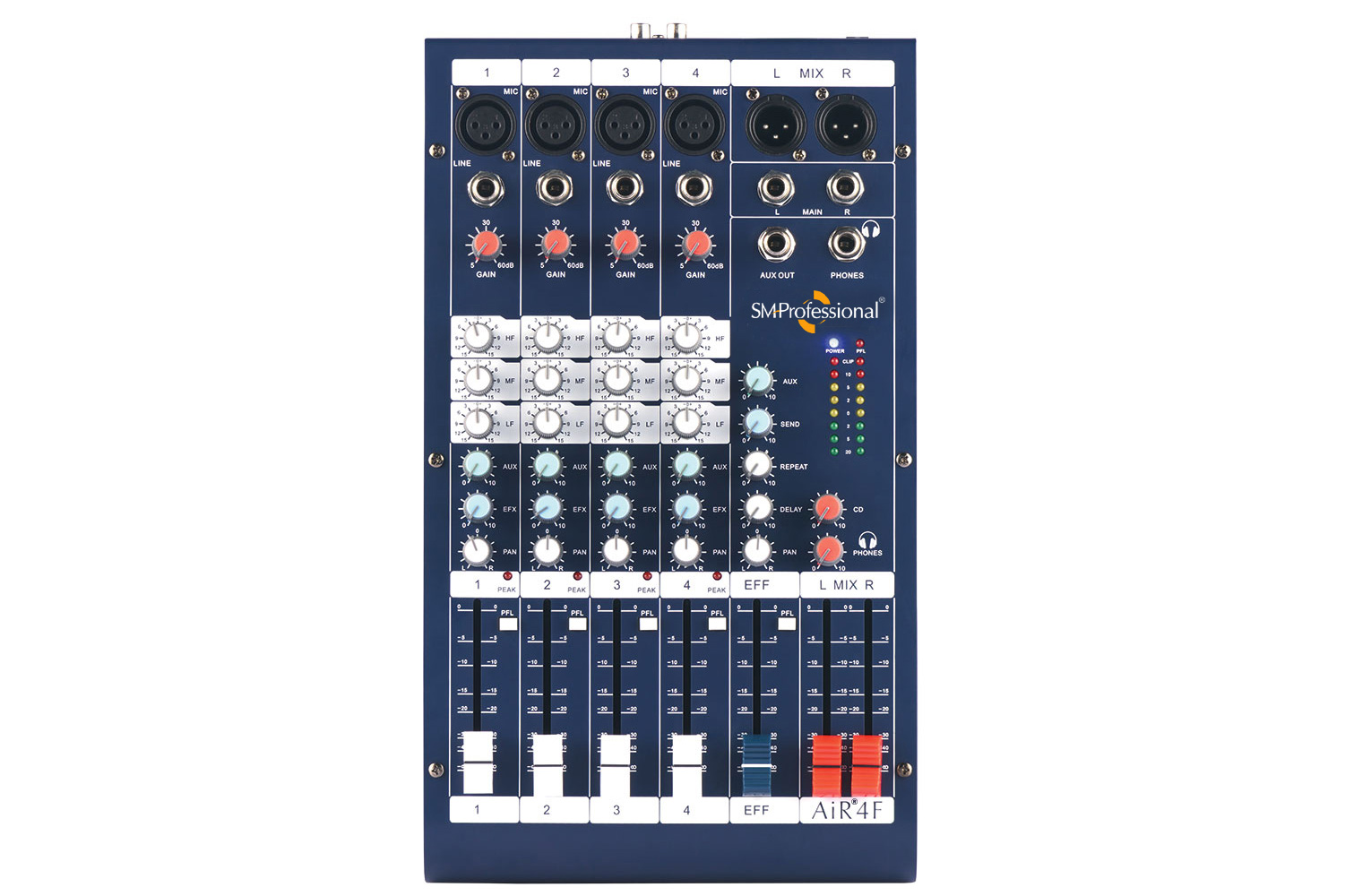

AiR 4F
The Studiomaster Professional AiR 4F is compact 4 channel mixer with built delay EFX ideal for budget-conscious users who refuse to sacrifice sound quality and reliability.
Features
Specifications
Downloads
AiR 4F
4 balanced mic/line inputs.
3-band EQ per channel.
1 Aux send.
Delay EFX on board with send per channel.
60mm long faders.
PFL (Cue) switch with individual channel control.
L/R pan pot and clip LED per channel.
Stereo RCA CD input with control.
8-segment L/R LED meter for master level.
Headphone output (¼”) with level control.
Balanced XLR and ¼” jack master outputs.
Model
AiR 4F
Input sensitivity
-60dBm to -40dBm
Nominal Input Level
AUX In (-20dB), Effect (-10dB), Line (-40dBm), MIC (-60dBm), Tape In (-10dB)
Nominal Output Level
Effect Send (-10dBm) AUX Send (0dBm)
Frequency Response
20Hz-20kHz (± 3dB)
Total Harmonic Distortion
<0.03%
Signal to Noise Ratio
-85dB
Clip indication
4dB prior to true clip
Equalisation (Treble/Mid/Bass)
±15dB @ 12kHz / 2.5kHz / 80Hz
EFX
Delay with repeat
Power Supply
AC 240V / 50Hz
Dimensions (W x D x H) mm
330 x 190 x 105
Net Weight (Kg)
3
