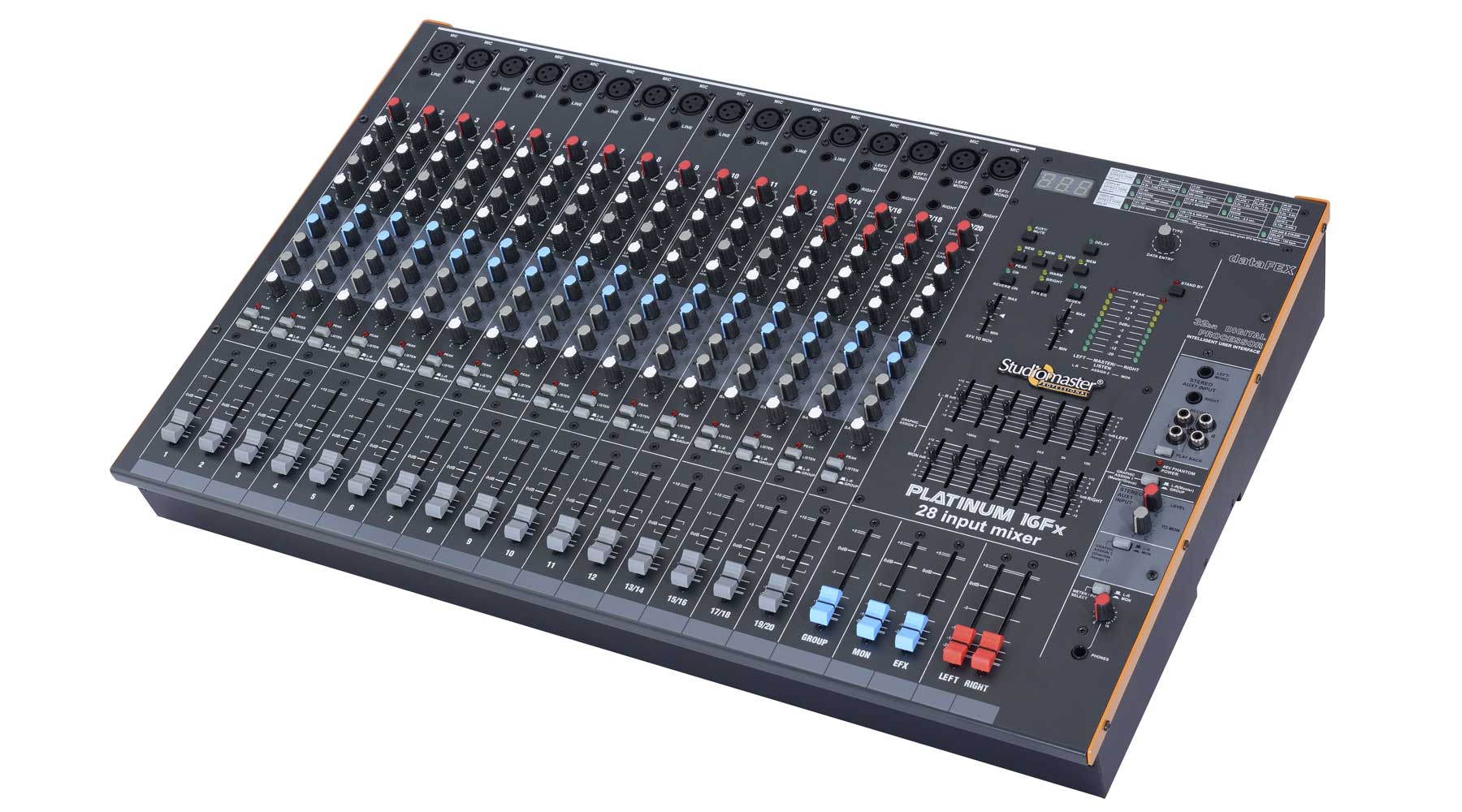

Platinum 16 Fx
Discontinued
A Full-fledged 28-channel mixer with 16 Mic inputs, 12 mono line input, 4 Mon-Ster inputs (Mono / Stereo) & Digital Effects
Features
Specifications
Downloads
Platinum 16 Fx
16 Channel Mixer (Mono XLR 16 Mic / 12 Line + 4 Mon/Ster)
3 band EQ with mid -sweep on monochannel.
Mon-Ster Input for Full Flexibility.
2 Aux Sends/ 1 Stereo Aux Returns
16 bit (32 bit internal) digital stereo EFX with user editable parameters.
High quality 147 preset effects with 4-memory switch and on board help.
2 Aux, 1 EFX, 1 Mon rotary control on each channel (Total 4 Aux sends).
Listen (PFL) & Group / Master routable switch per channel
Stereo 7 Band Graphic EQ switchable to Master /Monitor
Globally switched +48V phantom power.
L/R pan control on each channel.
12 Segment L/R LED meter for Master, PFL & Monitor Level.
Separate master fader control for Group, Monitor & L/R output.
¼” Jack for Line out & monitor output.
Balanced XLR & ¼” Jack Master output.
Stereo Tape In/ Tape Out, Headphone out with rotary volume control.
Model
Platinum 16Fx
Nominal Gain (Mic/Line/Stereo Line)
60dB/40dB/20dB
Max Gain (Mic/Line/Stereo Line)
75dB/55dB/35dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max)
-10dBu / -60dBu
Line (Gain Min /Gain Max)
+8dBu / -40dBu
Stereo Line (Gain Min /Gain Max)
+6dBu / -24dBu
Input impedence
Mic Input
Typically 2K Ω balanced
Line input
20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal / Max)
+0dBu (0.775V RMS) / +22dBu (10V RMS)
Main Output Impedance
<30Ω
Frequency Response
20Hz to 20KHz (+0/-1 dB)
Total Harmonic Distortion
<0.006%
Signal to Noise Ratio
-78 dB
Clip indication
5 dB prior to true clip
Equalisation
Mono Mic [Treble/Mid(with sweep)/Bass]
±15dB @ 12KHz/350Hz-6KHz/60 Hz
Stereo Mic/Line (Treble/Bass)
±15dB @ 12KHz/1.6KHz/45 Hz
EFX & USB
32 bit Multi EFX processor
Phantom Supply
+48V
Power Supply
150V~250V AC/50Hz
Dimensions (W x D x H in mm)
725 x 440 x 126
Net Weight (Kgs.)
12.7
