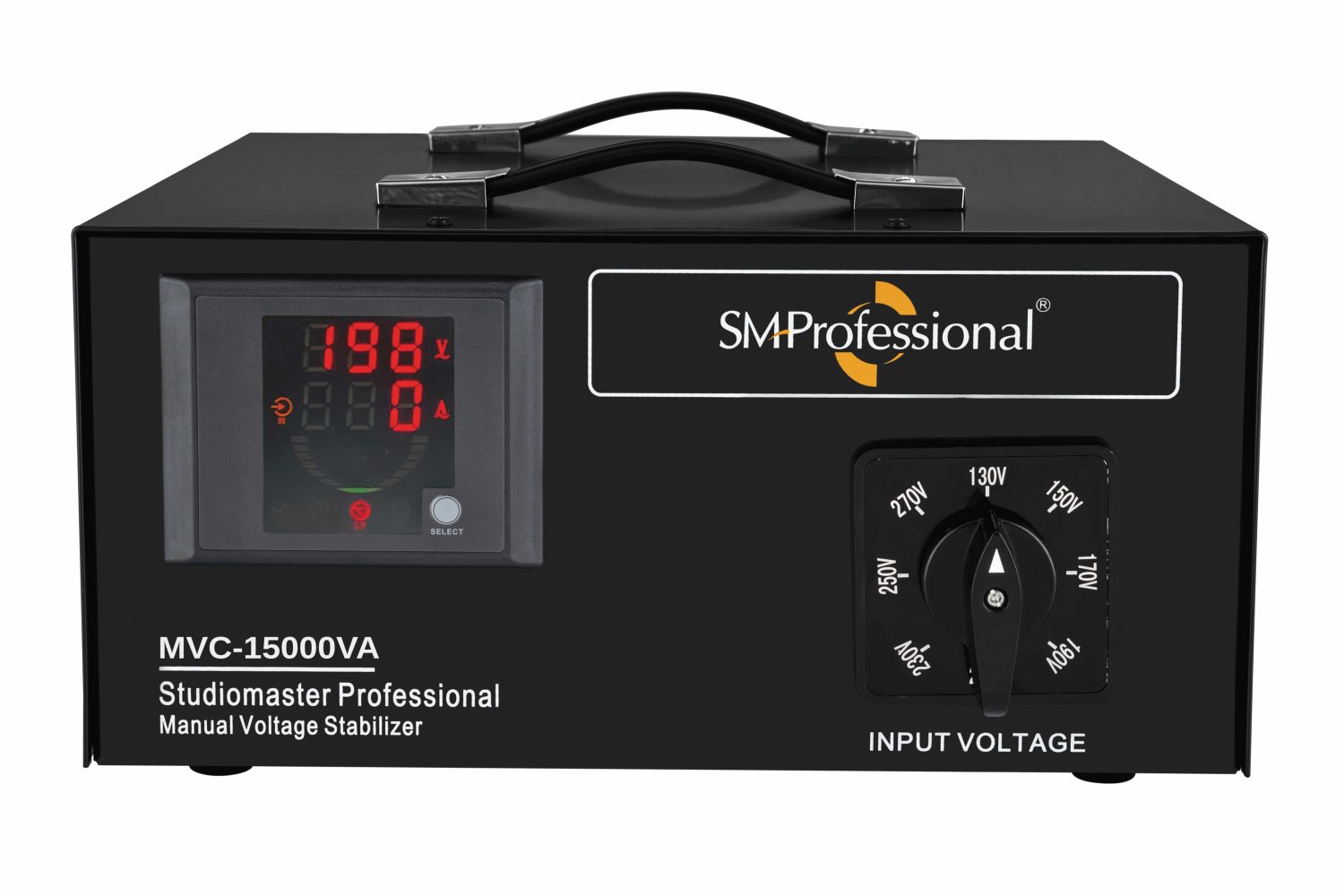

MVC 15000
The Studiomaster Professional MVC 15000 is high-endurance 15KVA/15000W professional manual voltage stablizer for high power loads, specially designed for audio equipment. Engineered and tested to be India-ready, the stabilizer provides quick, clean, and regulated AC power in environments with unreliable and fluctuating mains supply.
Features
Specifications
Downloads
MVC 15000
  • •

    High-endurance 15KVA/15000W professional manual stabilizers specially designed for audio equipment.

  • •

    Wide input voltage range and powerful load performance for Indian conditions.

  • •

    Protection features: over and under voltage, overload and short-circuit.

  • •

    Quick stabilization time.

  • •

    No waveform distortion.

  • •

    Low-noise operation.

  • •

    High lifespan and minimal servicing cycle.

  • •

    Accurate voltage control.

  • •

    Generator compatible.

  • •

    Rugged road-ready metal housing.

  • •

    Display meter indications: input and output voltage (via selection switch), output current, over and under voltage, load ratio, overload buzzer and power ON delay.

  • •

    Ships in a thick abuse-resistant wooden box for easy and safe transportation.

  • Model

    MVC 15000

    VA Rating

    15000VA

    Input Voltage

    Single Phase AC 130V-270V

    Output Voltage

    230V AC (±10V)

    Frequency

    50Hz-60Hz

    Rated Current

    45A

    Over-Voltage Protection

    250V

    Under-Voltage Protection

    170V

    Delay Output

    6 Seconds

    Working Temperature

    -10°C to +50°C

    Relative Humidity

    ≤90%

    Waveform Distortion

    No Additional Distortion

    Efficiency

    >95%

    Withstanding Voltage

    1000V

    Dimension (W x D X H) mm

    380 x 460 x 193

    Net Weight (Kg)

    24.4
