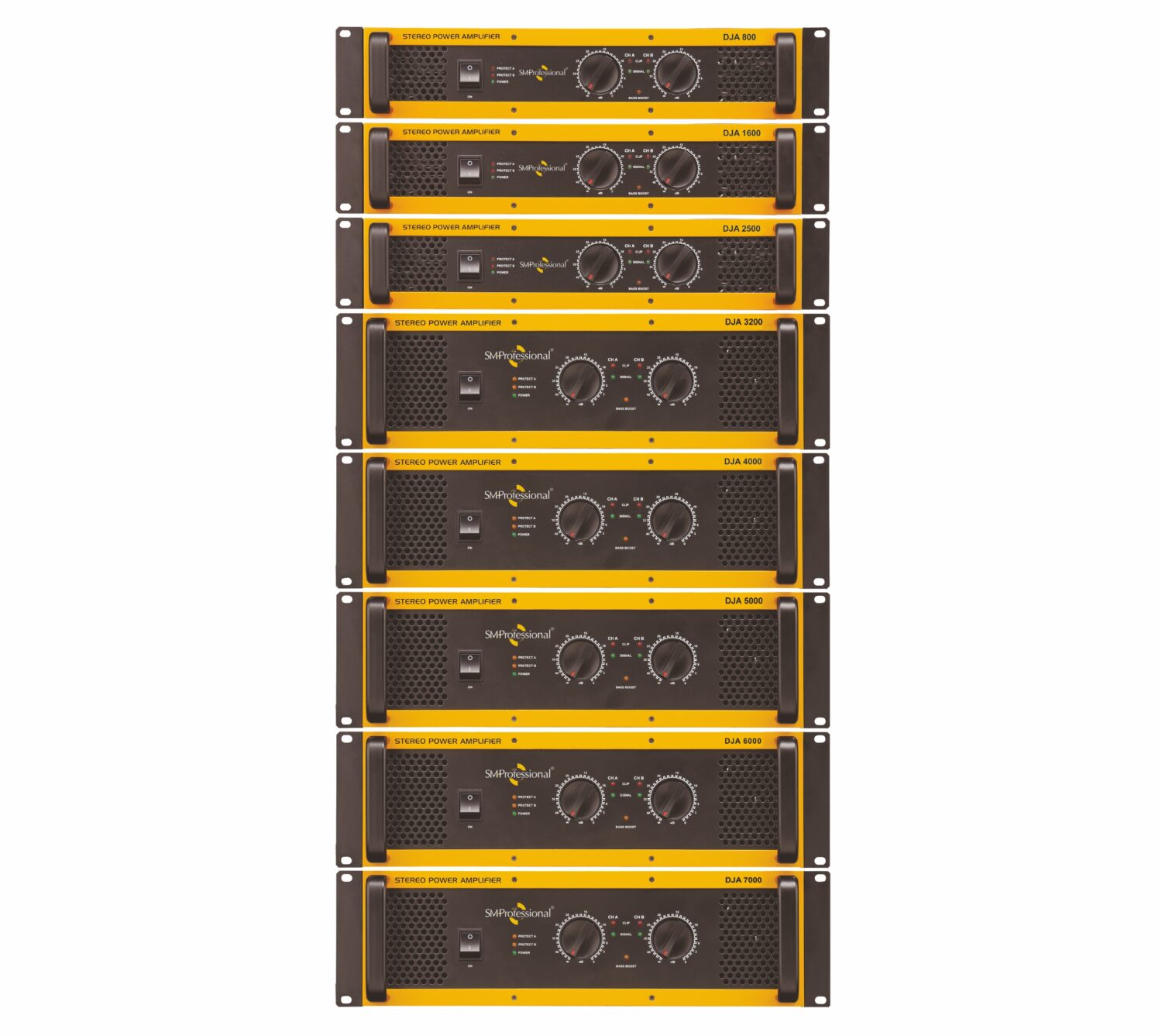

DJA 1600
The DJA Series power amplifiers are designed to give clean, dynamic power with the legendary Studiomaster Professional sound quality and reliability that professionals depend on.
Features
Specifications
Video
Downloads
DJA 1600
Rugged & Reliable Professional Stereo Power Amplifier.
Input: Balanced XLR & 1/4” Jack.
EQ Processing, Low Cut, Subwoofer selection options on rear panel.
Stereo, Bridge & Parallel mode selection switch.
Protection: Temperature ,DC Short Circuit.
Large cooling Fans.
LED Indicators on front panel for power, Signal, Clip, bass boost & Protect.
Mains voltage operation 220V AC-240V AC as well as low voltage operation (150V AC).
Output: Speakon & Binding Post Connectors.
19” rack mountable.
Power Output
4 Ω (True RMS),20Hz-20kHz,1% THD
2 x 550 W
4 Ω (EIA), 1kHz , 1%THD
2 x 800 W
8 Ω (True RMS),20Hz-20kHz,1% THD
2 x 350 W
8 Ω (EIA), 1kHz , 1%THD
2 x 560 W
Bridged Mode
8 Ω (True RMS), 20Hz-20kHz, 1% THD
1150 W
8 Ω (EIA), 1kHz , 1%THD_
1600 W
Damping factor
> 350 :1 (8 Ω)
Frequency Response
20Hz – 20kHz (-3dB)
Protection Devices
Temperature, DC, Short Circuit, Soft Start
Input Connector (Per Channel)
XLR, 1/4” TRS Jack
Output Connector (Per Channel)
Speakon / Binding Posts / 6.3mm Jack
Dimensions (W x D x H)mm
482 x 456 x 88 (2U)
Net Weight (Kgs.)
15
