Vak 50
The Vāk 50 is a premium Digital Conference System with Network Connectivity & Camera Tracking and more. Integrating state-of-the-art Digital Signal Processing technologies, network-based architecture, remote web management system, advanced priority control, ultra functional operating modes and more, the system is geared to empower seamless and scalable conferencing in large meeting applications.
Features
Specifications
Downloads
Vak 50
  • •

    Professional digital wired conference system.

  • •

    Seamless network connectivity via standard RJ45 ethernet connectors.

  • •

    Supports up to 100 participants by default for small to medium meeting scenarios.

  • •

    Can support up to 1000 participants via optional extender for larger meeting scenarios.

  • •

    Multifunctional operating modes such as FIFO, LIFO, chairman, all ON, auto mode and more.

  • •

    Advanced priority control with manual and auto recover options.

  • •

    Remote microphone ON/OFF and shutdown.

  • •

    Built-in USB MP2 recorder with sequential file saving and storage.

  • •

    RS-232 and RS-485 camera controller interface.

  • •

    Supports one camera system out-of-the-box and multi camera systems via optional extender.

  • •

    Embedded browser-based web management app for remote configuration and control via a PC, laptop or smartphone.

  • •

    User-friendly interface with responsive LCD touch screen.

  • •

    Quick plug-and-play installation, easy-to-use, no operator required.

  • •

    Ideal for boardrooms, conference rooms, legislative chambers and other large and complex meeting scenarios.

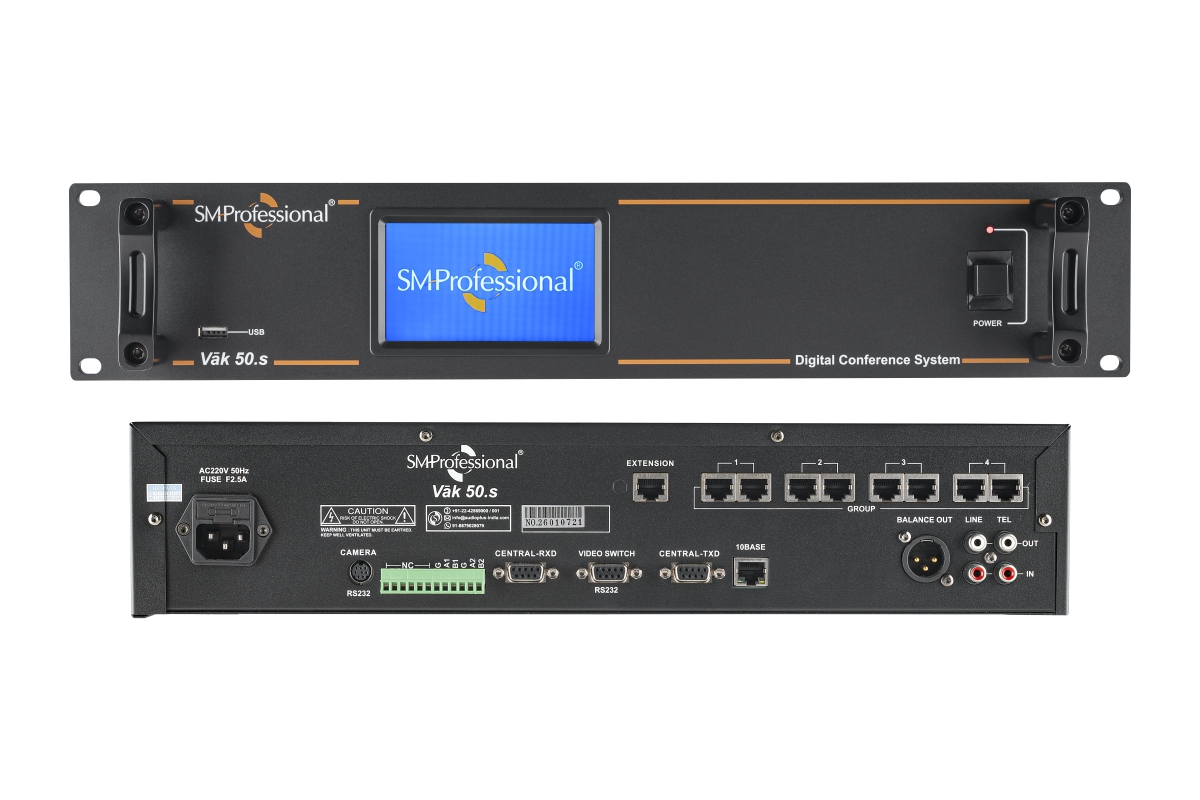

  • Vak 50.s (Main Controller)
    Operating Distance

    Between 2 microphones (2m), From 1st MIC to last MIC (70m-80m)

    Balanced Output Level

    -4dBV

    Frequency Response

    100Hz-15KHz

    Signal to Noise Ratio

    90dB

    Connector for chairman/delegate

    RJ45

    Audio Input Connector

    Line: RCA X 1, TEL: RCA X 1

    Audio Output Connector

    Line: XLR x 1, RCA x1, TEL: RCA x 1

    Line Sensitivity

    -15dB

    Power Supply

    AC 220 V, 50Hz

    Dimension (W x D X H) mm

    483 x 326 x 90

    Net Weight (Kg)

    5.5

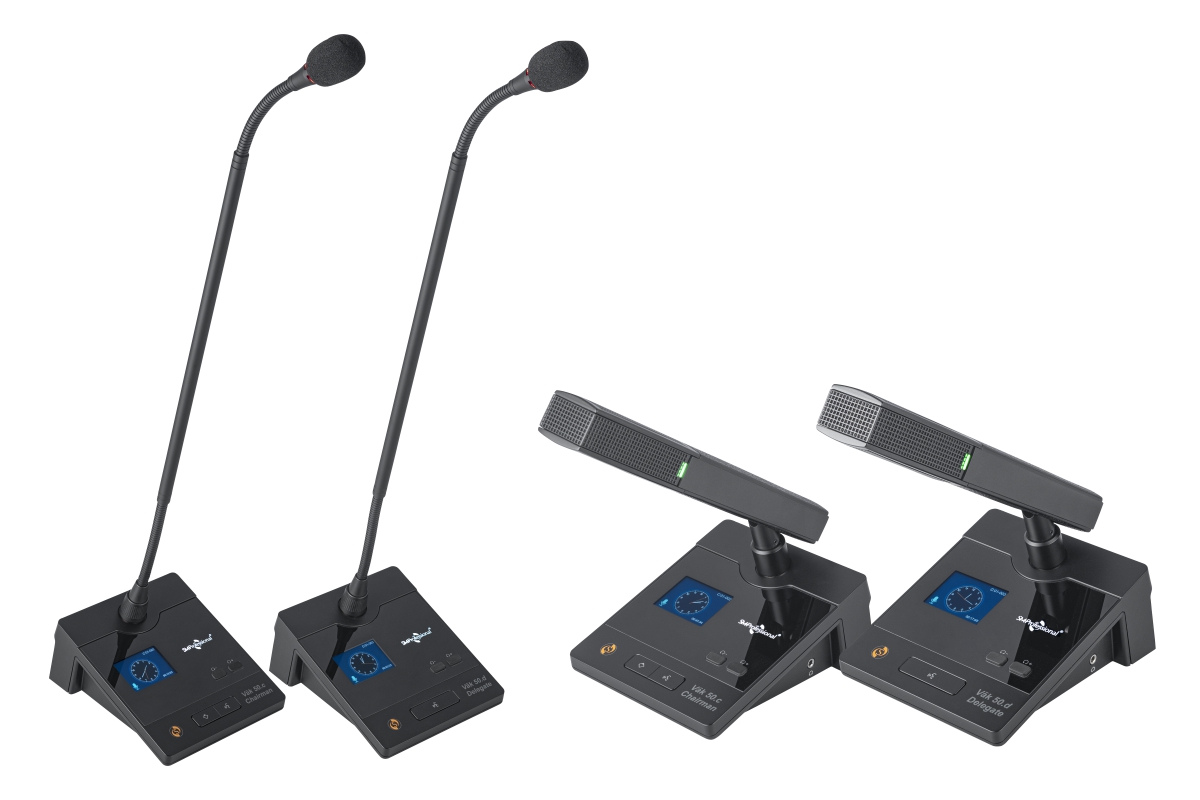

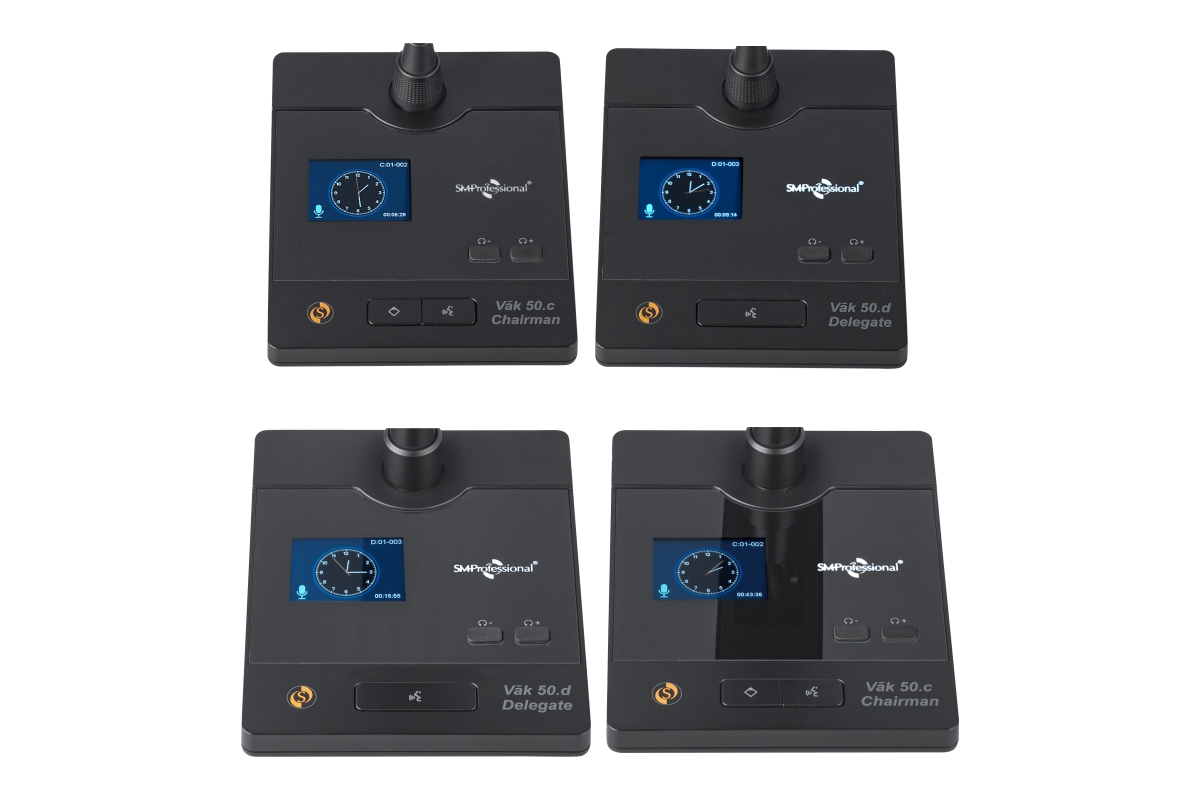

    Vak 50.c (Chairman) and Vak 50.d (Delegate)
    Frequency Response

    100Hz-10KHz

    Signal to Noise Ratio

    80dB

    Microphone Sensitivity

    -50dB/Pa

    Microphone Polar Pattern

    Cardioid

    Connection with Main Controller

    RJ45

    Length of Cable

    1.5m

    Length of MIC Tube

    215mm (Shortneck) / 540mm (Gooseneck) 2 Bends

    Priority Button

    Only on the Vak 50.c Chairman Unit

    Max. Current Consumption

    60mA

    Dimension (W x D x H)mm

    148 x 124 x 60 (Base)

    Net Weight (Kg)

    0.75
