Fire 90
The Studiomaster Professional Fire 90 is a high-performance single 12” 1200W (Peak) / 600W (RMS) passive line array system. Integrating custom-engineered transducers, carefully-selected components and leveraging Studiomaster Professional’s years of technical acumen, the Fire 90 is geared to deliver high-fidelity sonic reproduction and uniform acoustic coverage in live, touring, DJ, and install applications.
Features
Specifications
Downloads
Fire 90
  • •

    Single 12" LF mid-bass driver with 4" voice coil for detailed mid clarity

  • •

    2" exit HF compression driver with 2.84 voice coil for clear high frequency response

  • •

    Constant curvature waveguide for unprecedented array coherence and dispersion

  • •

    State-of-the-art crossover design for enhanced frequency response

  • •

    Exceptional sound quality, powerful response and long throw

  • •

    Coverage Pattern: 120° (Horizontal) x 9° (Vertical) for uniform acoustic coverage

  • •

    Variable splay angles (0°, 3°, 6°, and 9°) for versatile array configurations

  • •

    Integrated locking system quick, safe and secure installation

  • •

    Acoustically-tuned and durable wooden cabinet enclosure

  • •

    Attractive speaker grille and anti-scratch textured paint finish for stunning visual aesthetics

  • •

    Dual pole mounts for multiple throw options; straight and angled (up-firing)

  • •

    Robust fly bar kit for quick rigging and flying (available separately)

  • Model

    Fire 90

    Product Type

    Line Array

    Power Output (RMS / Peak) Watts

    600 /1200

    Frequency Response (Hz)

    40-20000

    System Maximum SPL

    128

    Sensitivity (1w @ 1m)

    98dB LF / 100dB HF

    LF Driver Size

    1 x 12” LF, 4" VC

    HF Driver Size

    1 x 2” exit, 3" VC

    Nominal Impedance (Ω)

    8

    Horizontal Coverage Angle

    120°

    Vertical Coverage Angle

    Crossover Frequency (Hz)

    2000

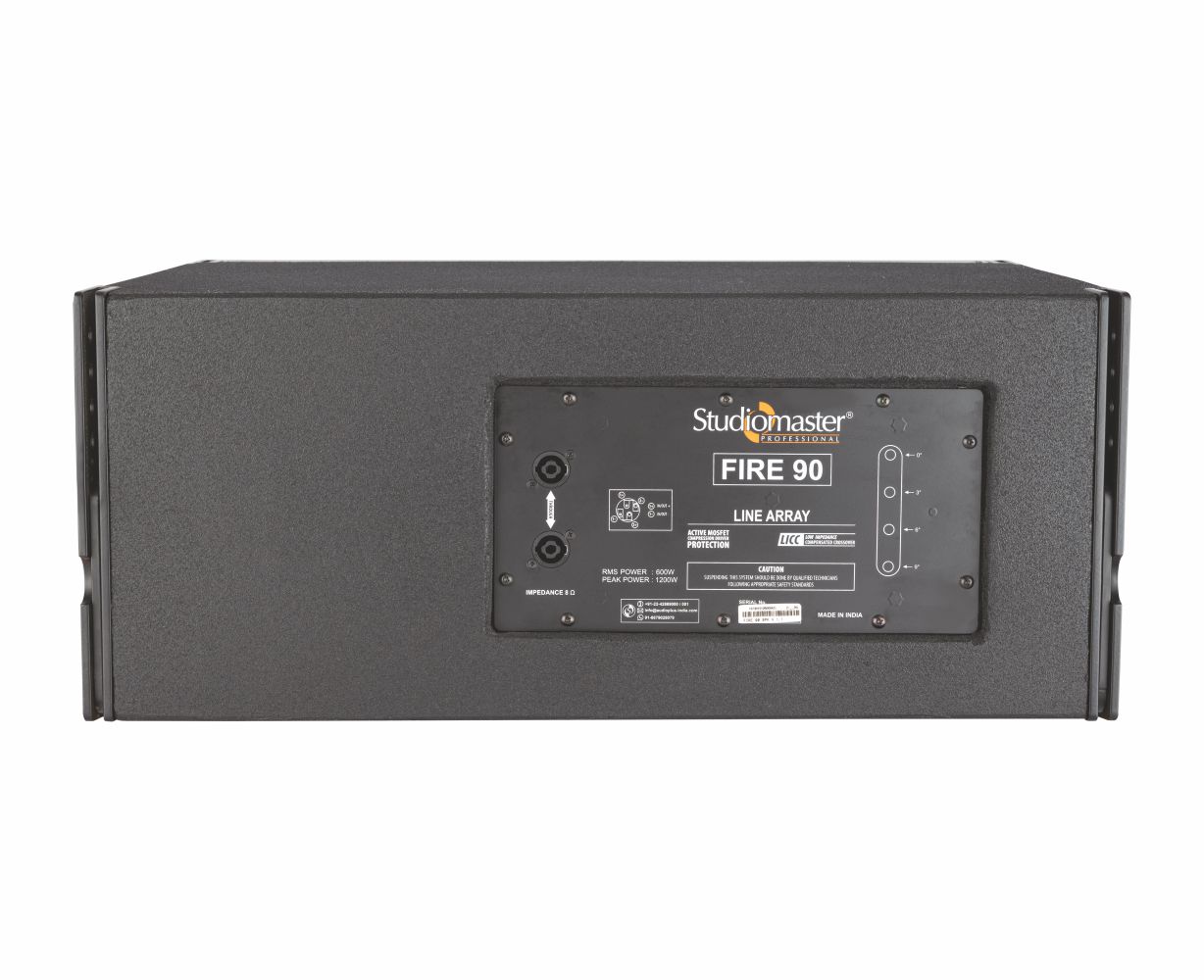

    Input Connectors

    2 x Speakon

    Variable splay angles

    0°, 3°, 6°, and 9°

    Dimension (W x D X H) mm

    675 x 450 x 350

    Net Weight Fire 90 (Kg)

    36

    Net Weight Fire 90 Fly Bar (Kg)

    17
