SX 432
The Studiomaster Professional SX 432 is a 2-way/3-way stereo and 4-way mono active crossover. Featuring accurate 24dB per octave slope premium Linkwitz-Riley filters, summed mono bass outputs and more, the crossover is ideal for a wide range of live, touring, DJ, and install applications.
SX 432
SX 432
Features
Specifications
Downloads
SX 432
  • •

    Accurate 24dB per octave Linkwitz-Riley slope filters.

  • •

    "Low Sum" mono subwoofer output for powerful bass performance.

  • •

    Individual level controls for all band outputs.

  • •

    40Hz high pass (low cut) filter and x10 range switch on both channels.

  • •

    Individual phase reverse switches for instant phase correction.

  • •

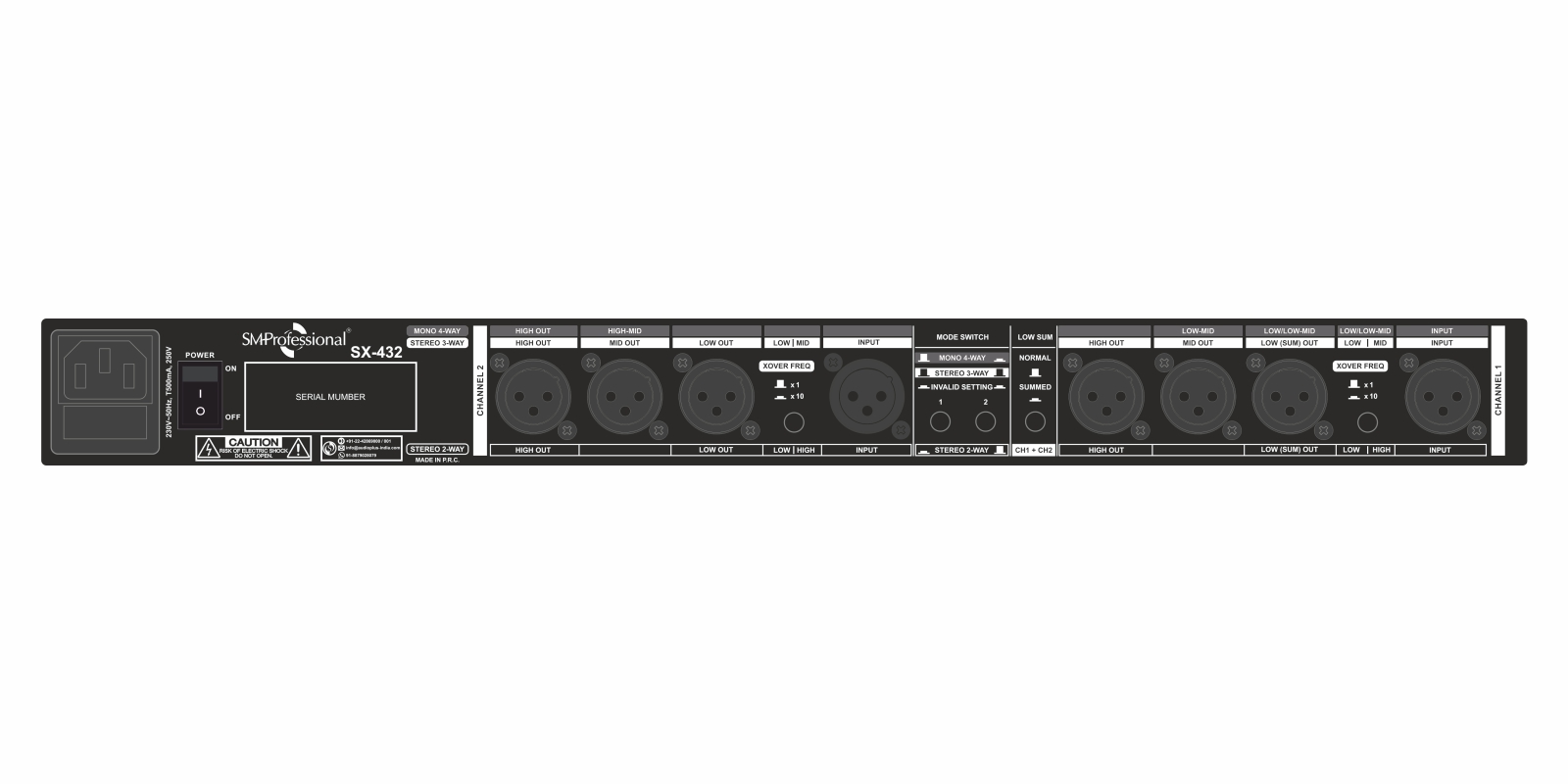

    Balanced XLR inputs and outputs.

  • •

    Ideal for live, touring, DJ, and install applications.

    • Model

    SX 432

    Input Impedance

    Balanced.: 50KΩ / Unbalanced.: 25KΩ

    Output Level / Impedance

    Balanced.: 200KΩ / Unbalanced.: 100KΩ

    Signal to Noise Ratio

    >85dB

    Crossover Frequency Response

    45Hz–9.6kHz

    THD

    0.05%

    Low Cut

    -3dB @ 40Hz

    Input sensitivity

    0dBu

    Slope (Low, Mid, High)

    24dB/octave

    Subwoofer slope

    24dB/octave

    Dimension (W x D X H) mm

    482 x 175 x 44 (1U)

    Net Weight (Kg)

    1.8

    Manual
    Brochure
