SX-2

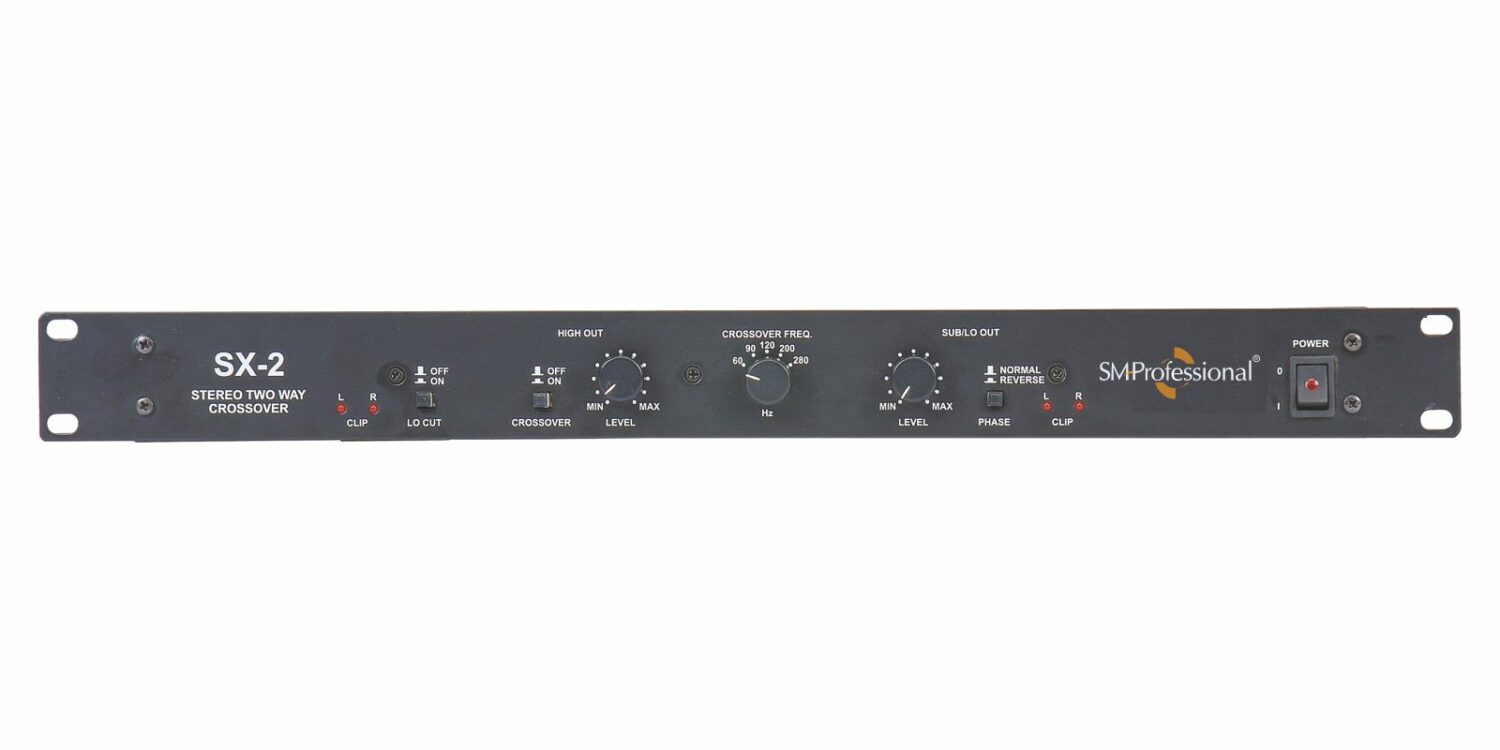

The Studiomaster Professional SX 2 is a 2 way stereo Active crossover.
Features
Specifications
Downloads
SX-2
18dB for Low & High / Octave Slope.
Crossover Selectable Frequency: 60, 90, 120, 200 & 280Hz
Individual output control for both frequency bands.
Clip LED, Phase Reverse, Low Cut & Bypass Switch.

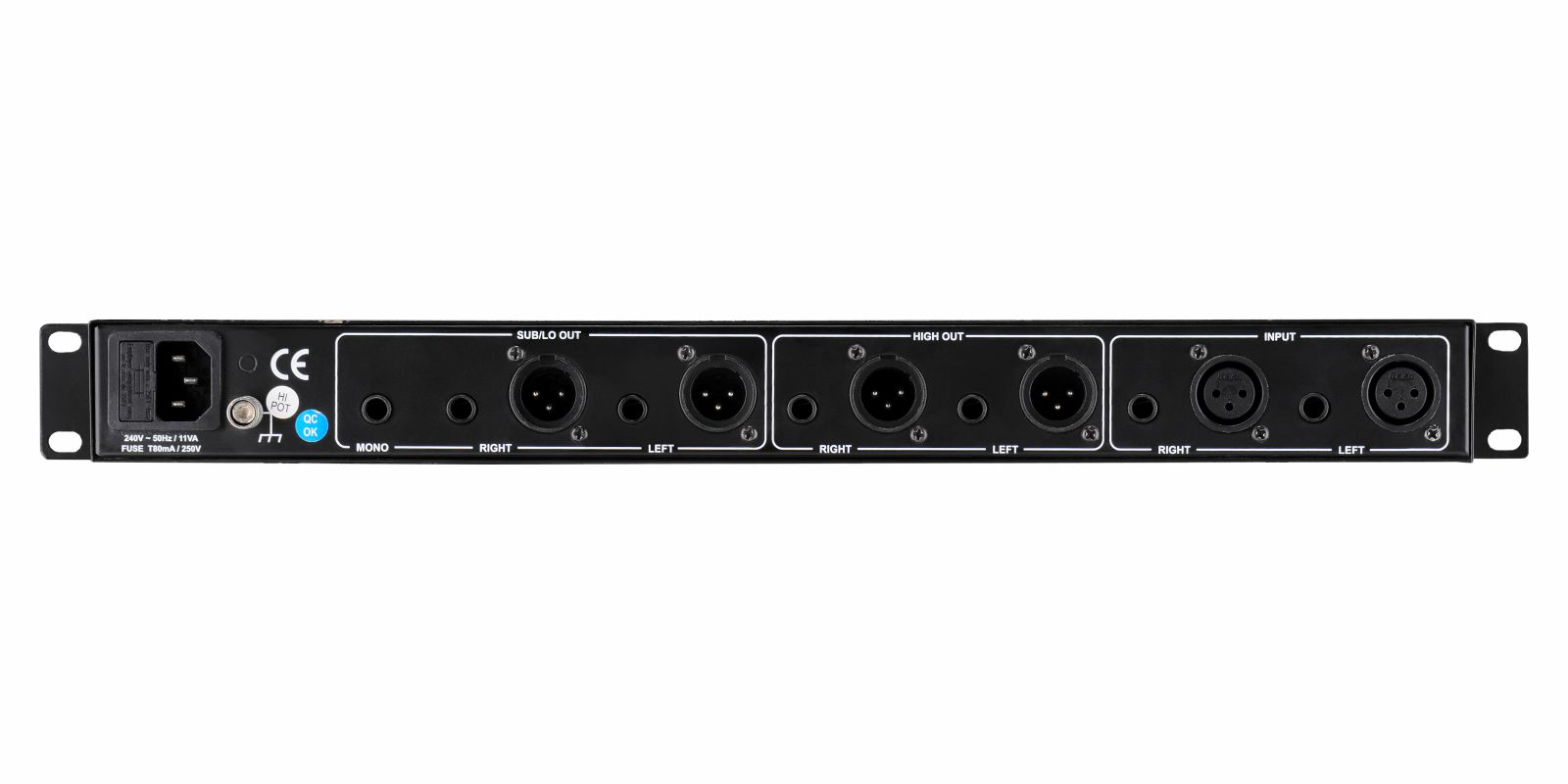

Input & Output Connectors: XLR & 1/4" TRS Jack.
Model
SX-2
Input Impedance
20K Ω , Balanced
Output Level/Impedance
0.775V/600 Ω , Max 7V Balanced
S/N ratio
90dB
Crossover frequency range
60Hz, 90 Hz, 120Hz,200Hz, 280Hz
THD
<0.1%
Low Cut
-3dB@50 Hz
Input sensitivity
0dBu
Slope (Low, Mid, High
18dB/octave
Subwoofer slope
–
Power Supply
230 V / 50 Hz
Dimension (W X D X H)mm
482 x 132 x 44 (1U)
Net Weight (Kgs.)
2.7
