XSM 255

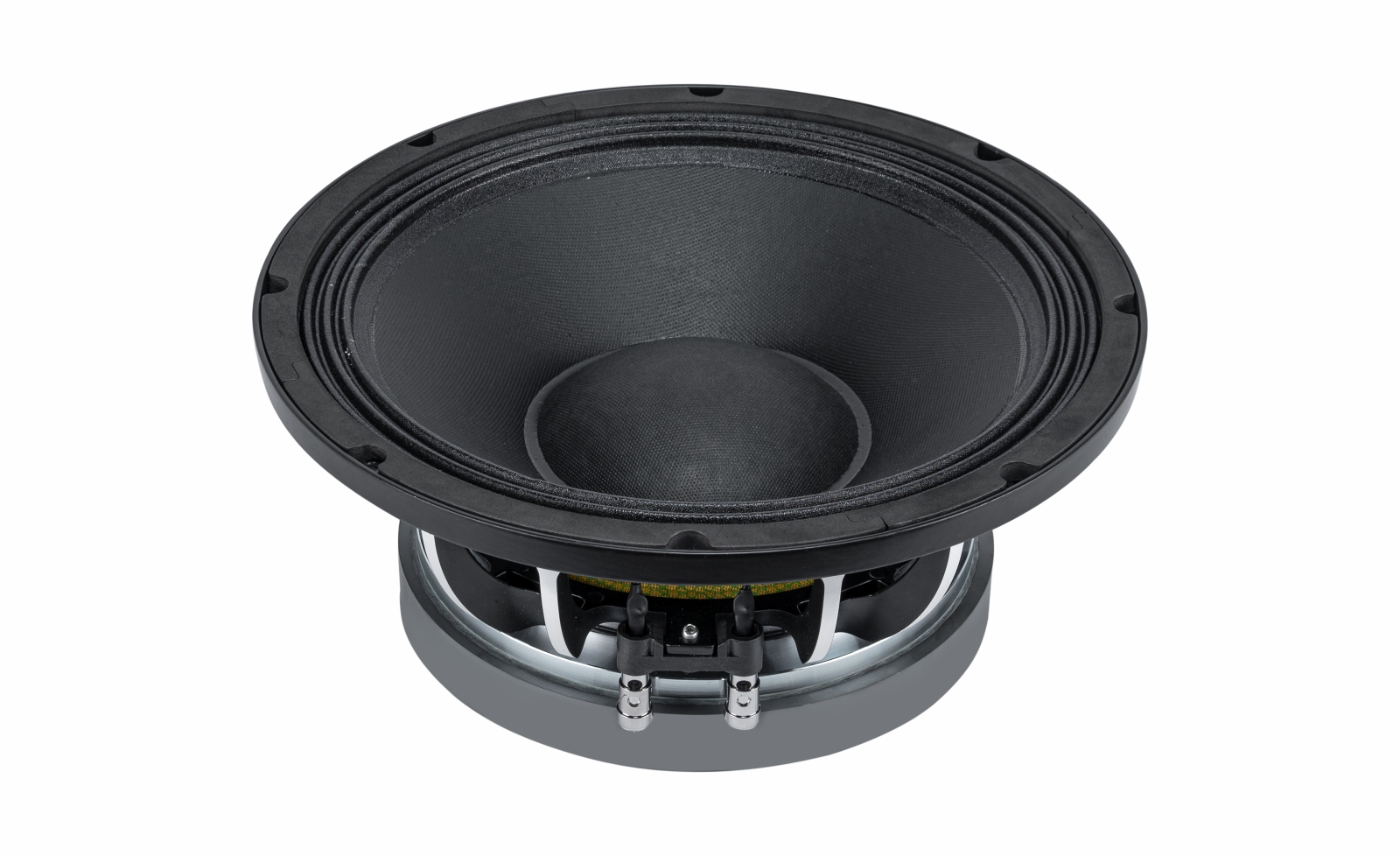

The Studiomaster Professional XSM 255 is a high-quality 12” 500W (RMS) / 1000W (Peak) mid-bass transducer. Assembled using high performance components, the transducer delivers excellent sound quality at a value-driven price point.
XSM 255
XSM 255
Features
Specifications
Downloads
XSM 255
  • •

    Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling.

  • •

    Heavy-duty die-cast frame with a wide flange for increased rigidity.

  • •

    Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch

    • Model

    XSM 255

    Product Type

    Mid-Bass

    Power Output - (RMS / Peak) Watts

    500 / 1000

    Frequency Range (Hz)

    55-3000

    Impedance (Ω)

    8

    Sensitivity (1w @1m) dB

    96

    Nominal Diameter (mm/inch)

    300 / 12

    Voice Coil Diameter (mm/Inch)

    100 / 4

    Voice Coil Material

    Copper

    Kind of Layer

    Inside/Outside

    Basket

    Aluminium

    Net Weight (Kg)

    9.9

    Manual
    Brochure
